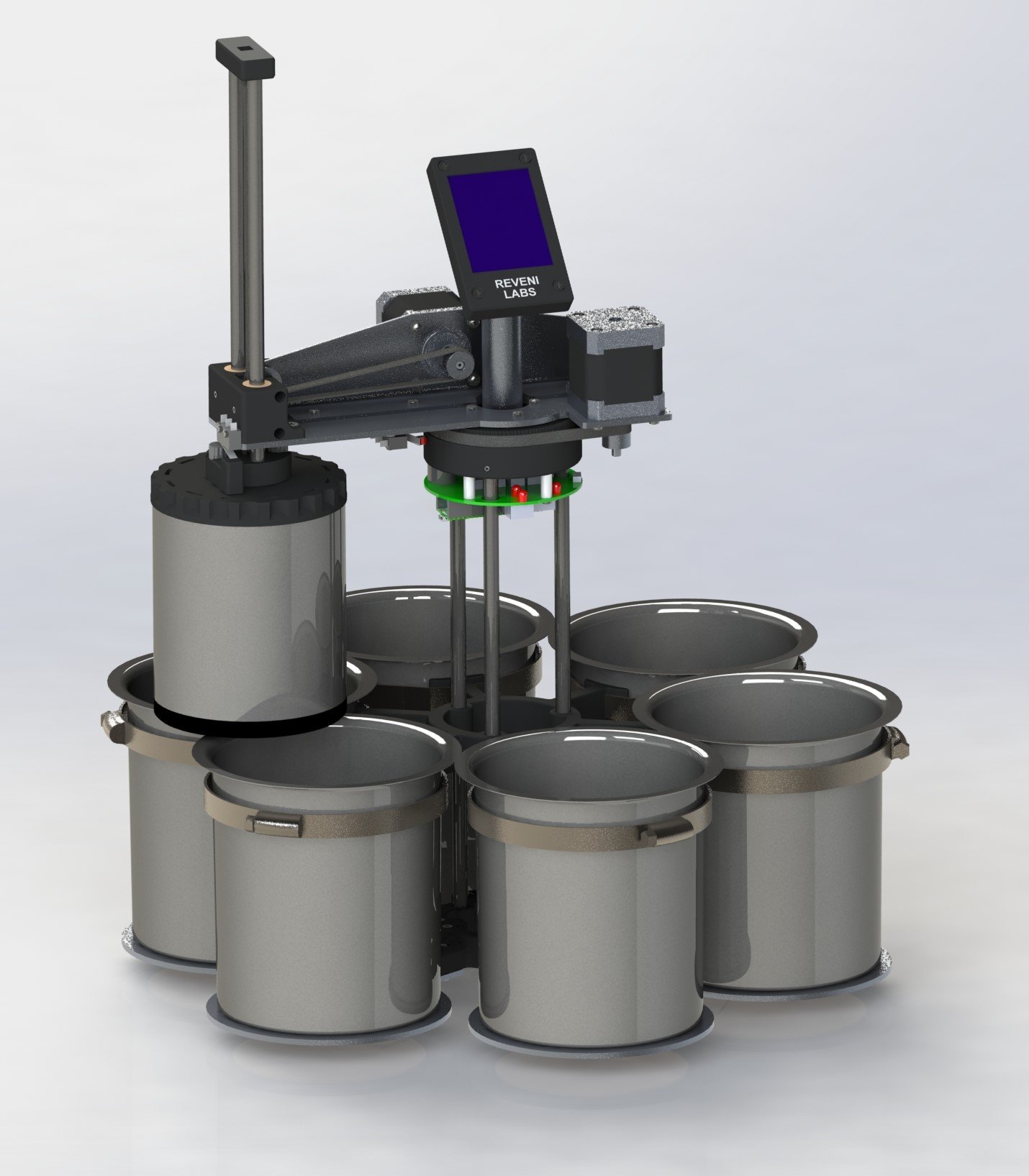

Reveni Labs DunkBot
Automatic Film Processor
A budget-friendly automated home film developing machine
Assemble yourself kit - $700 USD + Shipping
Partially pre-assembled - $900 USD + (bigger box, more expensive) Shipping
On Kickstarter now! Click Here
Simple Design For Maximum Reliability
No Pumps, no valves, no hoses
Two-axis mechanized robot arm
Minimal moving parts, mechanisms, and difficult-to-clean tight spaces
Reduces the types of materials exposed to strong oxidizing salts in photographic chemical solutions
Maximium process flexibility
Exposed Design for Ease of Care and Maintenance
Exposed motor drive mechanisms make preventive maintenance easier
Operation is easily observed, giving you an intuitive understanding of your machine
Unique Developing Tank Design
Load your film, pour in chemicals, wait for completion, hang to dry
Light-tight base permits passage of liquids in and out of the tank
Light-tight lid permits air to flow in and out as the liquid levels rise and fall
Agitation is provided by partial lifting and lowering of the tank during the development cycle
Six Pots for a Variety of Chemical Processes
Black and white: 1. Pre-soak 2. Developer 3. Stop bath 4. Fixer 5. First wash 6. Second wash
C-41 Colour: 1. Heated pre-soak 2. Heated developer 3. Heated blix 4. First wash 5. Second wash 6. Final rinse
E-6 Colour: 1. Heated pre-soak 2. Heated first developer 3. Heated wash 4. Heated colour developer 5. Wash 6. Blix 7. Final rinse off-machine
Top View
Easy Electronics
User-replaceable and easily sourced component modules - 3D printer stepper motor drivers, popular Raspberry Pi Pico processor module with USB software update capabilities
Leveraging Modern Technologies
Using 3D printed parts (and parts for 3D printers) to maximize user-replaceability and ease of sourcing/creating replacement parts
3D printed parts
Off-The-Shelf parts from 3D printers
Detailed Specs
Developing Capabilities
Black and white, C-41 Colour, E-6 Colour
Film Sizes
2x 35MM, 1x 120/220, 1x 127, 2x 110
Chemical baths
Six pots , 1 litre chemical volume, four heat capable
Process control variables
Process step time, individual pot temperature, agitation frequency, number of agitations, drip drain time
Machine Specs
Footprint
18” (450mm) diameter, 20” (490mm) height
Weight
Approx. 12 lbs (5.5 kg)
Power requirements
Universal (100-240V, 50-60Hz) to 24VDC 6A in-line power supply included
Heat-up time
Approx. 2 minutes per 1°C (1.8°F)
eg. 20 °C (68°F) starting temperature, 40°C(104°F) target temperature = ~40 minute heat-up time
Other items needed for use (or helpful)
Photographic chemicals, film changing bag, film puller, drip tray, running water, film hanging clips, chemical storage bottles
